PD50

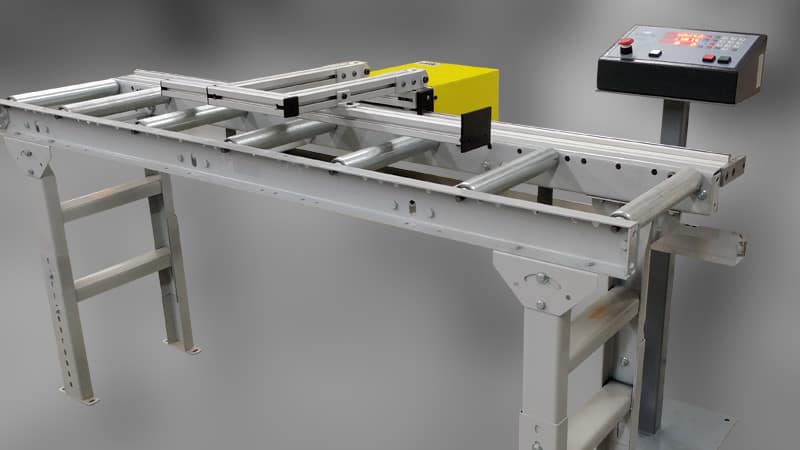

PD50 – Auto Stop System

Automatic/semi-automatic length stop gauge featuring a heavy-duty rack and pinion drive system.

The Kentucky Gauge PD50 allows you to improve cut accuracy, eliminate mistakes and increase part yield. Equipped with a rack and pinion drive and a high-accuracy, non-contact linear encoder, the PD50 is built to last and ready for integration with any new or existing production and fabrication equipment. Eliminate setting manual stops and setup time completely with the PD50 automatic length stop gauge.

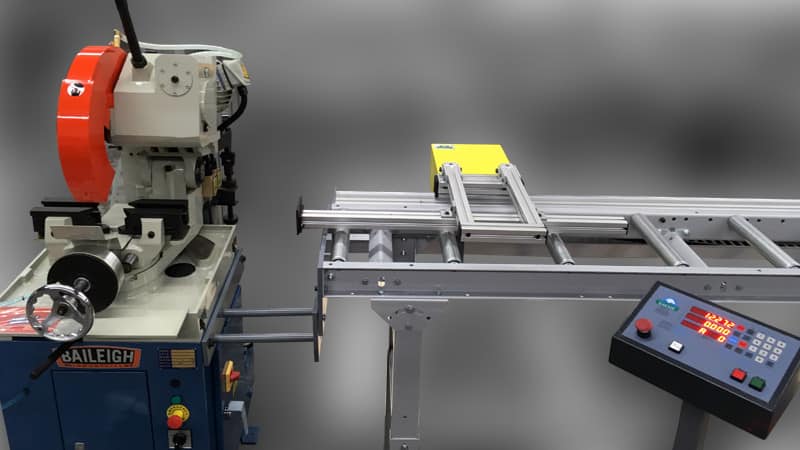

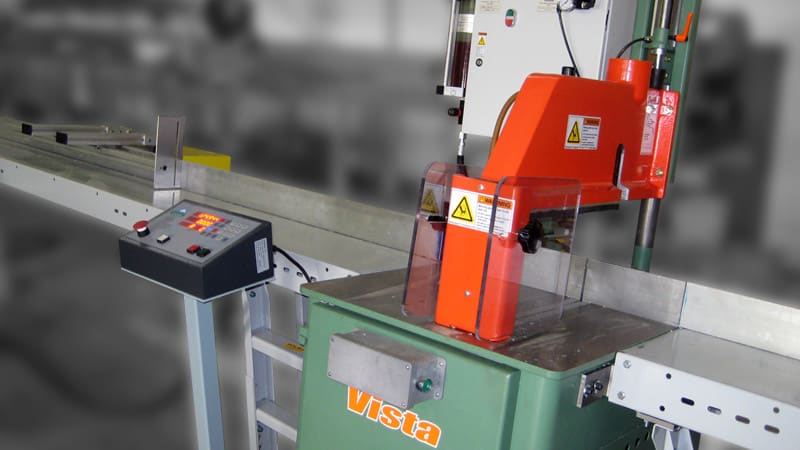

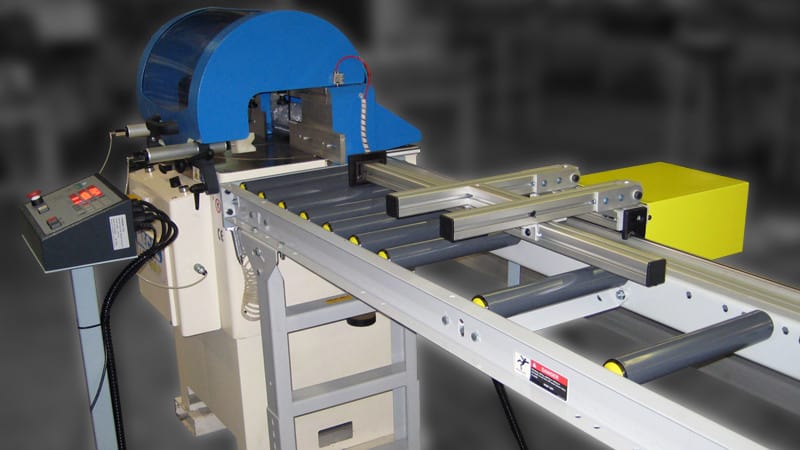

The PD50 is perfect for any ferrous and non-ferrous fabricating equipment:

  • Cold Saws
  • Upcut Saws
  • Column Saws
  • Band Saws
  • Drills
  • Ironworkers
  • Punch Presses
  • Shears
  • Press Brakes
  • Custom machinery and more!

Ready to put Kentucky Gauge to work for you?

Key Features

5-Micron Linear Encoder - Non-Contact and Wear-Free

5-Micron Linear Encoder – Non-Contact and Wear-Free

Our linear encoders boast a resolution of 0.005mm, allowing you to achieve unparalleled length accuracies. The non-contact nature of these encoders ensures high-accuracy measurements for a lifetime.

Unlike rotary encoders, there are no moving parts. All the mechanical components found in rotary encoders (flange, shaft, bearings, etc.) are not needed, which eliminates mechanical failures.

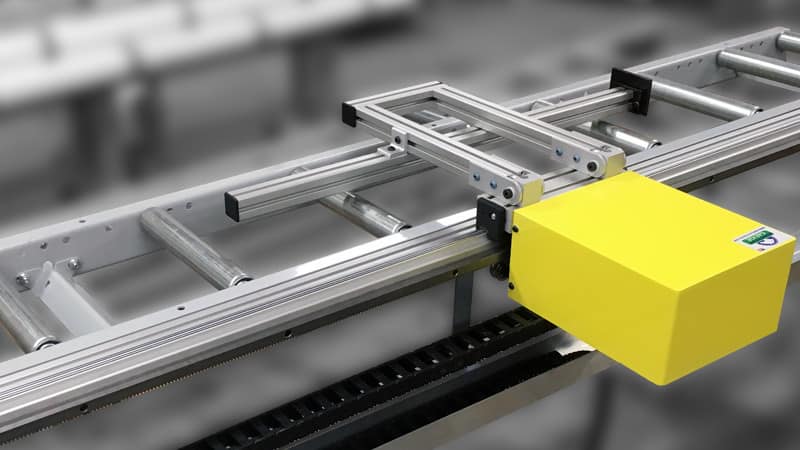

Rack and Pinion Drive - Rugged and Reliable

Rack and Pinion Drive – Rugged and Reliable

Unlike belt drive systems, our rack and pinion drive isn’t prone to wear or fatigue. Moreover, we’re not limited by the belt length. We can build the PD50 to measure ANY LENGTH that you require.

Fully Programmable with I/O's for any Equipment or Tool

Fully Programmable with I/O's for any Equipment or Tool

Our controllers are fully programmable to do exactly what you need them to do. The controllers are simple to program at the keypad without requiring specialized training. If you require nesting and optimization, programs can be optimized using Excel and downloaded to the controllers using our supplied software.

We also include a free-standing controller stand that allows you to place the controller where it’s most convenient for your operators.

Customized to Fit Your Needs

Customized to Fit Your Needs

Need a custom face plate? NO PROBLEM.
Need a custom table or conveyor system? NO PROBLEM.

You tell us what you need and dedicated production team will make it happen.

Specifications

Resolution

LCD controller with fractional display available on request.

0.001″, 0.01mm, 1/64″ (on request)
Encoder Accuracy

Non-contact and wear-free magnetic linear encoder.

± 0.0005″
System Repeatability

Overall system accuracy varies based on system length.

± 0.001″ / 0.01mm
Travel Speed

For smooth and accurate positioning, our motor drive incorporates acceleration and deceleration speed ramps, which can affect overall speed when pushing heavy weights.

Additional gearbox ratios available to adjust speed and/or pushing capacity.

20″ / sec
Program Memory

Additional programs can be stored on a PC and downloaded to our controllers using our DAVe software.

3000 individual positions

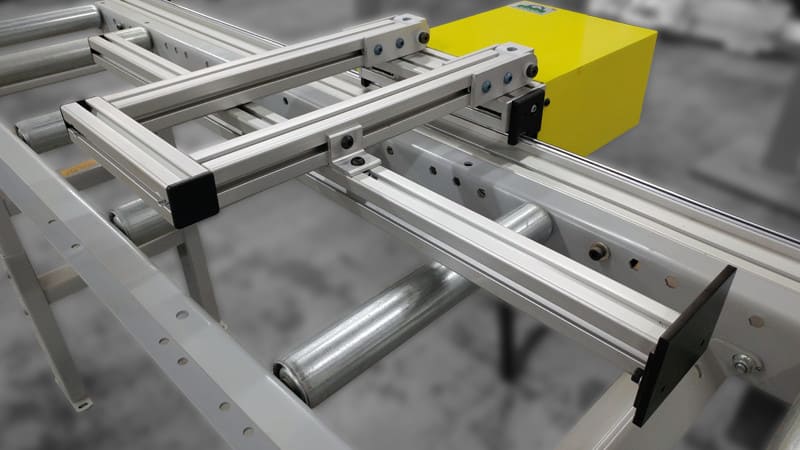

Arm Length

Additional lengths available on request.

36″
Steel Faceplate

Additional sizes available on request.

3″ x 4″
Measuring Range

Unlike our competitors, we’re not limited to a few standard sizes. We can build our systems to ANY length that you require.

UNLIMITED

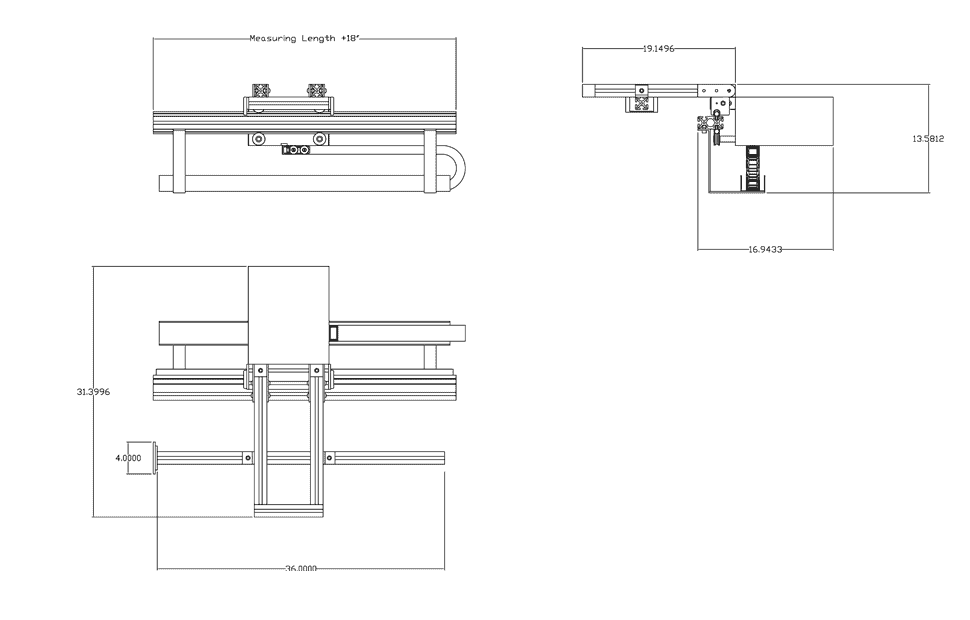

Dimensions

Dimensional drawings are provided as a reference only. Due to customization options and ongoing updates, dimensions are subject to change without notice.

Manuals / Downloads

Due to the large selection of customization options, manuals are provided as general guidelines only. Supplemental material is provided for customized features.

Add-ons

PypeServer Lyte Tablet Addon Package

PypeServer Lyte Tablet Package

Turnkey tablet addon package with 1 year of PypeServer Lyte.

Barcode Scanner

Barcode Scanner

The barcode scanner allows the operator to scan a barcode to set the desired position/measurement for the stop arm.

Roller Conveyor

Roller Conveyors

We offer various roller conveyor options, including widths, heights, weight capacities, and roller options. Check out the full selection and options here.

Steel Top Flat Tables

Steel Top Flat Tables

Made from powder painted 10ga rolled steel. We offer various options, including varying widths and heights. Standard widths are 12″, 16″ and 22″.

Mar-Free Flat Tables

Mar-Free Flat Tables

These custom made tables feature a polypropylene table top surface to ensure your materials remain free from scratches and scuffs during production.
