Versa-Stop – Versatile Stop System
Ideal for applications that require quick and efficient changeover.
The Kentucky Gauge Versa-Stop is a versatile multi-stop system that features a tool-free operation, which nearly eliminates setup and changeover time. The Versa-Stop’s slotted guide rail allows for a universal fit that can adapt onto any new or existing manufacturing process where precise and repeatable positions are required.
The Versa-Stop works with any ferrous and non-ferrous fabricating equipment that requires reliable and repeatable positioning:
- Cold Saws
- Upcut Saws
- Column Saws
- Band Saws
- Drills

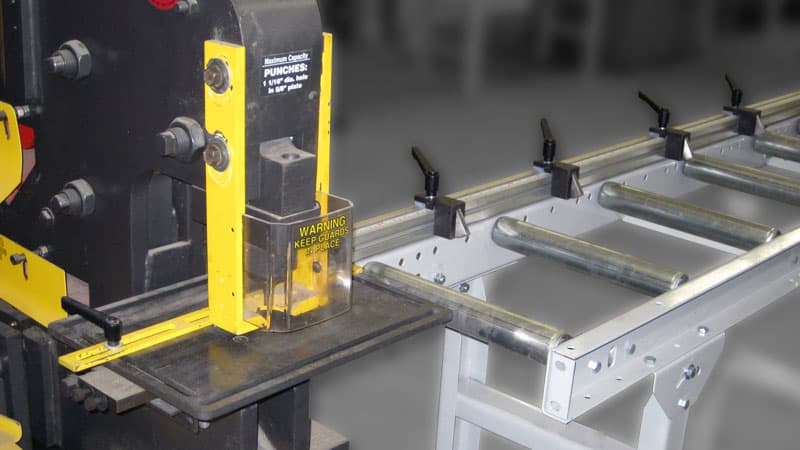

- Ironworkers
- Punch Presses
- Shears
- Press Brakes
- Custom machinery and more!
Ready to put Kentucky Gauge to work for you?
Key Features

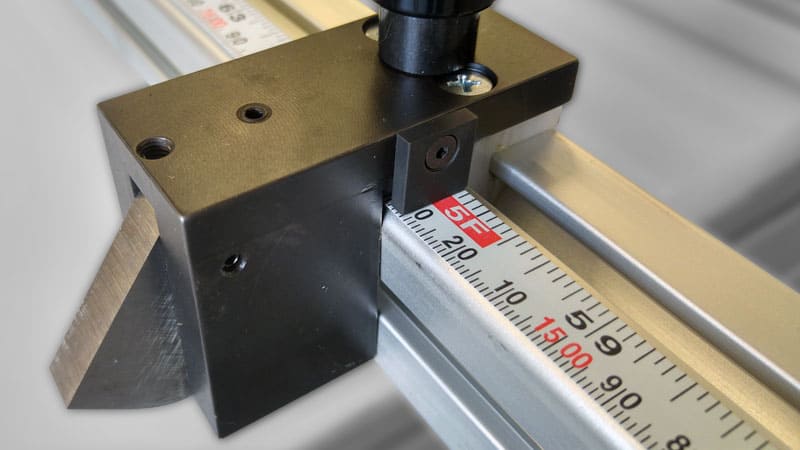

Adhesive-Backed Tape Rule with Inch and Metric Graduations
The Versa-Stop comes standard with a steel adhesive-backed tape rule with a white background to provide reliable measurements and high visibility in all shop environments.
Right-to-Left and Left-to-Right tape rules available.

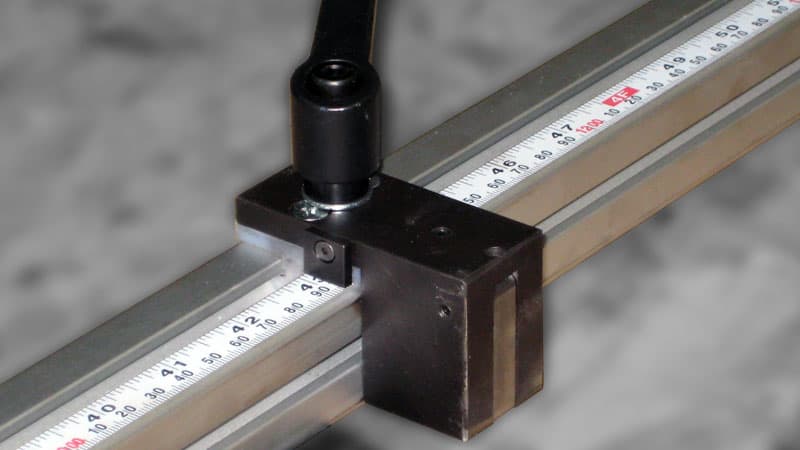

Bypass Feature for Unused Stop Blocks
The spring-loaded contact plates can be closed to allow the operator to bypass unnecessary measurements. Thus, reducing changeover times.
Maintenance-Free Bearings
The Versa-Stop utilizes a self-lubricating UHMW bearing pad. This material has a low coefficient of friction, which ensures a smooth carriage travel.
Unlike roller bearings, there is no required lubrication or concerns about breakdown. Thus, maintenance costs and downtime are virtually eliminated.
Roto-Lock Brake Handle for Secure Positioning
Each stop block is equipped with a roto-lock brake handle to securely hold the block in positioning, ensuring reliable positioning and repeatable measurements.
Specifications
| Graduations High quality precision steel rule is flat with permanent adhesive back. *Standard graduation for tape rule lengths up to 12ft. Other options available for over 12ft lengths. | 1/16″ / 1mm* 1/32″ for first 12″* |
| Stop spacing The minimum stop spacing is 1.375″. The maximum spacing is limitless. | ≥ 1.375″ |
| Brake Force Holding force with the brake engaged. | 800 N |
| Measuring Range Unlike our competitors, we’re not limited to a few standard sizes. We can build our systems to ANY length that you require. | UNLIMITED |
Dimensions

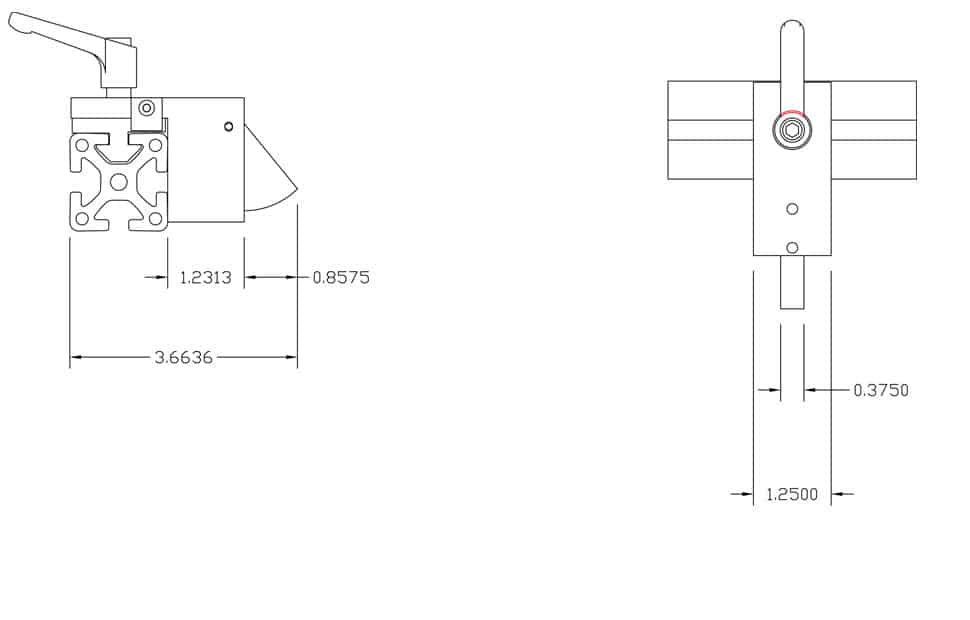

Dimensional drawings are provided as a reference only. Due to customization options and ongoing updates, dimensions are subject to change without notice.
Photo Gallery

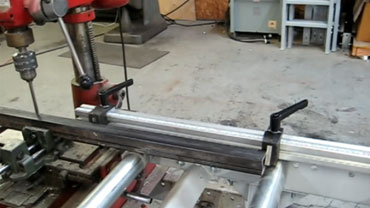

Video Gallery
For additional videos, visit our YouTube Channel.
Manuals / Downloads
Due to the large selection of customization options, manuals are provided as general guidelines only. Supplemental material is provided for customized features.
Add-ons

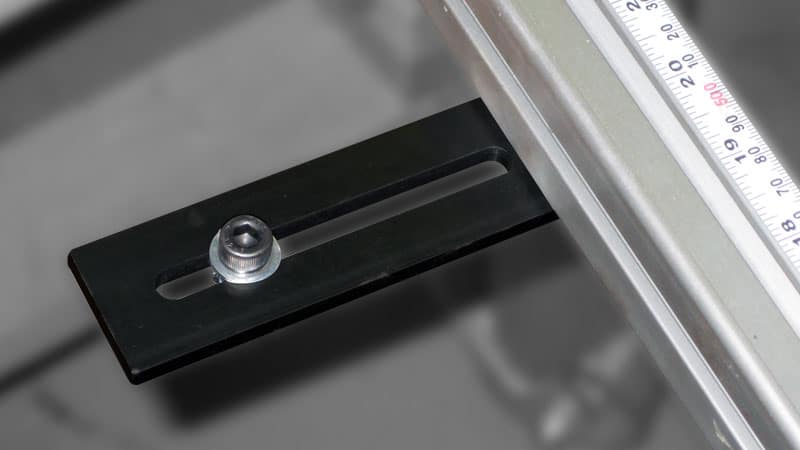

Y-Axis Brackets
The y-axis brackets provide approximately 3.375″ of y-axis movement/offset in the guide rail.
Roller Conveyor
We offer various roller conveyor options, including widths, heights, weight capacities, and roller options. Check out the full selection and options here.
Steel Top Flat Tables
Made from powder painted 10ga rolled steel. We offer various options, including varying widths and heights. Standard widths are 12″, 16″ and 22″.
Mar-Free Flat Tables
These custom made tables feature a polypropylene table top surface to ensure your materials remain free from scratches and scuffs during production.
